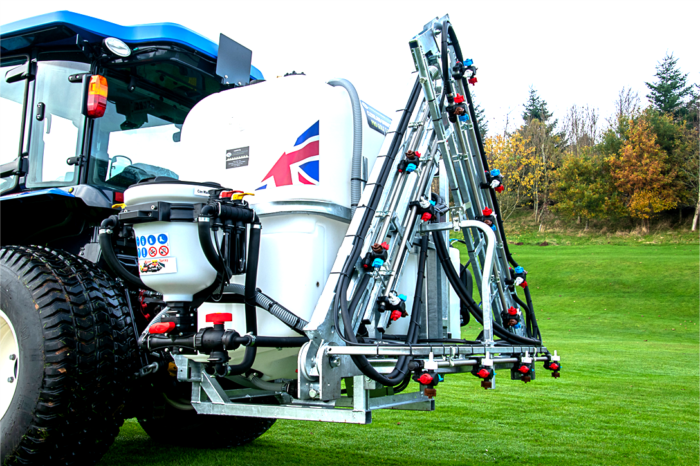

CLEVELAND GAMBETTI ‘PRO GOLF’


MADE IN GREAT BRITAIN

This range is available as a 300lt, 400lt, 600lt 800lt & 1000lt with a 6m boom as standard. What new… everything! A new frame with captive pin mountings which ensure absolute robust connection to the tractor. The frame is new from the ground up and has one bracket fitted as standard to accept every optional extra we offer. This way machines can be upgraded after initial purchase with ease. The complete machine has been specially treated to stop corrosion caused by liquid iron. In fact… there is NO PAINT! It is totally anti-corrosion treated to ensure longevity. All our latest booms and frames on the tractor mounted range are made in this way! We are so confident in our machine we offer a 3 year construction warranty.

A complete new range of booms….. a super tough manual boom, with anti corrosion treatment is fitted as standard. You can opt for an 8m boom or a 10m boom if you need to get further than the standard 6m.

Quad 4 way nozzles are fitted on stainless steel spray lines with nozzle protection. There is 50% less pipe work than our previous model to ensure thorough cleaning is easier and quicker!

A clean water rinse system and tank wash are fitted as standard. The all new clothing locker is 100% bigger than the old model and more accessible. There is a brand new chemical mixer hopper with high speed empty and a hopper and container rinse system to ensure it is kept clean.

why choose the Cleveland Gambetti Golf Pro…… Its tough, it has an anti corrosion treatment as standard, less plumbing, more accurate, more efficient and easier to use!

Instant Support

ALL new Cleveland Gambetti tractor mounted sprayers have a QR code on the machine. You can scan the code which automatically gives you instant access to the operators manuals and spare parts lists. Easy, simple and time saving!


Pro Golf Specification

Standard Sprayer Features Include:

● 3 year warranty (limited)

● NEW Liquid Iron proof anti corrosion treatment

● Shaped tank with deep total emptying sump

● Electric on/off control with manual boom section selection, with pressure balancing taps and clear pressure gauge

● Rinse tank with rinsing system

● NEW high power 20lt chemical mixer with can washer

● 3 cylinder high output diaphragm pump

● Protective clothing locker

● Clean water hand wash tank

● Hose pipe holder

● 6m anti corrosion manual folding steel boom

● Stainless steel boom lines

● Jet protection on last meter of boom

● 4 way jets for feed and chemical application

  • Fill connector to fit to hose pipe or irrigation system for easier filling


Options

PRO GOLF options

  • 3 section electric controls including pressure      (for 6m boom)
  • 5 section electric controls including pressure (for 8m boom)
  • AMC 180 Golf course computer rate controller
  • AMC400e Golf course GPS Rate controller, includes high spec GPS receiver and automatically turns sections on/off via satellite)
  • AMC400s Golf Course GPS Rate controller (Seletron) with high spec GPS receiver and automatically turns individual nozzles on/off via satellite
  • SET1 Onsite setup & training
  • HR301K Hose reel c/w mounting kit and brass lance
  • GBAM10 Foam marker kit for greens 5lt
  • GBAM12 Foam marker kit for greens and fairways 20lt
  • KF5 Foam concentrate (5litre) bottle

All New Design

the Cleveland Gambetti PRO GOLF is the latest design in golf course sprayers. Full nozzle protection and stainless steel spray lines help with protection from undulating terrain and for boom longevity. The new anti corrosion treatment makes a real difference when using products like liquid iron.


Compact Folding Boom Design

an all new compact folding boom with quad 4 way nozzles fitted. We are also fitting 2 sets of air induction nozzles as standard which are essential on a golf course. An 04 RED & an 08 WHITE. The nozzles are protected behind steel support bars to prevent breakages in the event of collision.


New Clothing Storage Locker

a new design providing double the capacity of the old model but now fully water tight with a proper seal and security lock


Electric on/off with Manual Boom Sections

Electric main on off with manual boom sections and pressure adjustment. Full electric controls can be added as an option


Option of Full Electric Controls

if fully electric controls are added, they are positioned on the side of the machine and the front become clear of any pipework and plumbing


Option of Foam Marker

a foam marker can easily be added to the PRO GOLF range. It simply bolts onto the side bracket. Neat compact and easy to fill


All New Chemical Induction Hopper

an all new chemical induction hopper provides high pressure chemical mixing and the ability to rinse the hopper and chemical containers. Also controlled from here is the internal main sprayer tank washing system



Boom Options

different boom options can be added to the PRO GOLF range. A 6 or 8m hydraulic boom, a 6m WGF ground following shrouded boom or the BK20 ground following aluminium boom.


Hose Pipe Holder with Fast Fill Connection

our unique fast fill Geka connector hose pipe holder with anti syphon is fitted on the PRO GOLF range as standard


Electronic & Rate Control Options

Standard Electric on/off

The Gambetti pro range comes with a standard on/off switch box. It requires a simple 12v feed and turns the whole boom on/off with one switch. The pump is constantly agitating the tank content and the spray is at the nozzle instantly when turning the switch on.


Full Electric controls

All the sprayer is controlled from the cab. A main on/off switch, a pressure adjustment switch and 3 boom sections for a 6m boom with 5 boom sections available for an 8m a 10m & a 12m boom. Modern golf course tractors are often cabbed these days and this eliminates any need for the rear window to be open. Safer, less plumbing on the sprayer and far easier to use than manual controls!


AMC 180s Rate Control

You can add automatic rate control to any Gambetti Sprayer. It is now very simple. We can preprogram your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor now, so there is no need to spend hours fitting a complicated mechanical speed sensor!


AMC 400e Rate Control with GPS

Automatic rate control with GPS guidance built in.
It is now very simple. We can preprogram your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor , so there is no need to spend hours fitting a complicated mechanical speed sensor! This system turns the boom sections off when the boom passes over a treated area and back on again when the boom goes over an untreated area. This system as standard works to a 4cm GPS accuracy.


AMC 400s Rate Control with GPS

Automatic rate control with GPS guidance built in. INDIVIDUAL NOZZLE CONTROL
It is now very simple. We can preprogram your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor , so there is no need to spend hours fitting a complicated mechanical speed sensor! This system turns every nozzle off independently when the nozzle passes over a treated area and back on again when the nozzle goes over an untreated area. This system as standard works to a 4cm GPS accuracy. It can be upgraded to a 2cm accuracy.
