CLEVELAND GAMBETTI ‘PRO DEDICATED’
Easy access for truck maintenance. Compact profile so truck can be fitted through narrow gates or shed doors. No vulnerable sticking out tanks, wheels or hoppers.
Gambetti Pro Dedicated Range
Gambetti dedicated sprayers are available to fit to Toro workman, John Deere Progator, and the Jacobsen DX truckster.
The tanks are designed to spread an even weight across all four wheels of the truck, the 3 cylinder pump ensures a smooth application rate even at high volume spraying.
The boom is fitted with 4 sets of very high quality jets in a quad jet body to cover a fast range of out puts.
Electric controls, Rate controller are fitted as standard along with clean water tank and clothing locker, to fully comply with the latest HSE regulations. The boom is a electric folding 6m boom.
Note: The shape of the Tank accommodates all the optional extras within the 2.5m folded width of the boom unlike the John Deere or the Toro machines which when fitted with chemical induction hoppers or hose reels stick at the sides of the tank/boom looking very vulnerable.
Dedicated Sprayers general info
Dedicated sprayers are very popular with green keepers and football clubs.
This range is fitted with a three cylinder diaphragm pump, which means they run smoother, do not pulse and have the capability to spray large volumes at normal speed, this is a professional sprayer, many manufacturers at the time of writing only fit a two cylinder pump as standard eg Hardi, J. Deere, Toro.

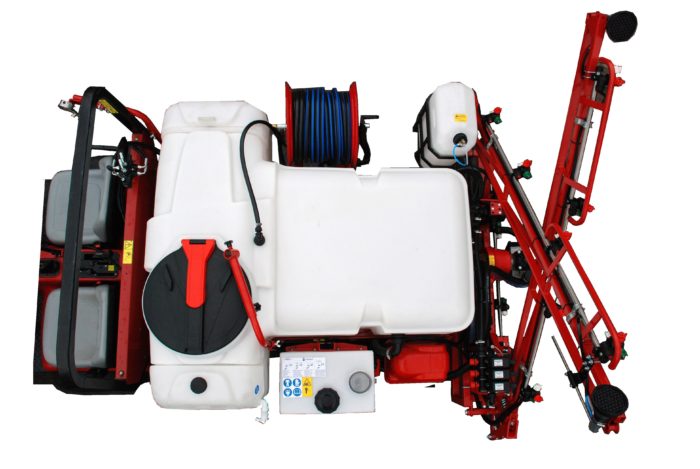

Note the picture looking down on the PRO PLUS this was taken whilst fitted to a Toro Workman see how all the extras (hose reel, Foam marker kit, Clothing locker, Clean water tank), are all kept neatly within the foot print of the truck. Nothing sticking out to get swiped off or damaged reversing into the shed.
The Pro Dedicated has all the extra’s you would expect from a Gambetti sprayer to keep you within the law, hose pipe holder for mains water filling. Correct size of clothing locker , a space in the truck cab is not a clothing locker. (HSE rule). Fully shaped tank to enable spraying all but a few litres out even on slopes, a internal tank washing system with proper stainless steel spinning head. Stainless steel spray-lines fitted with a compact quad jet, standard tips include the new CFA air induction jet (red) for ultra low drift, 05 Tee-jet XR for medium capacity high cover (brown), 06. Tee jet XR high capacity high cover (white) and a stainless steel 015 Tee-jet huge volume jet for liquid feed drenching. Fully pressure balanced electric controls are included and are operated from the cab with a neat switch box, computer controls are also standard.
- Total emptying shaped tank to maximize weight distribution.
- Clothing locker integrated into tank.
- Hand wash integrated into tank.
- Strong steel frame.
- Removable demount jack legs.
- 3 cylinder 120lt/min pump.
- Special agitation system.
- Tank washers.
- Electric balanced controls.
- 2 stage filtration.
- Hose pipe holder.
- Stainless steel spray lines.
- Quad nozzle bodies.
- Nozzle protection bars.
- Electric Folding 6m boom.
- Chemical induction hopper.
- Rinse tank.
- AMC 180s Bravo rate controller.
- AM8MXT Manual fold extension.
- AM10MXT Manual fold extension convert 6m GMX or GEX.
- AMNAV GPS navigator with precision receiver.
- GPSINC Inclination sensor for above.
- AMC400s Seletron auto nozzle shut off GPS navigator
c/w inclination sensor.
- HR301K C/W mounting kit and brass lance.
- GBAM12 Foam marker kit for greens and fairways.
- KF5 Foam concentrate (5litre) bottle.
- GBAMFF Fast fill from irrigation pipe (Geeka).
- Dedicated mounting brackets.
WGF13 shrouded boom option. The best ground following covered boom available! In fact, it is the only fully shrouded boom on the market!
AMC 180s Rate Control (standard)
Rate control is standard on the dedicated version. It is now very simple. We can preprogram your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor now, so there is no need to spend hours fitting a complicated mechanical speed sensor!
AMC 400e Rate Control with GPS
Automatic rate control with GPS guidance built in.
It is now very simple. We can preprogram your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor , so there is no need to spend hours fitting a complicated mechanical speed sensor! This system turns the boom sections off when the boom passes over a treated area and back on again when the boom goes over an untreated area. This system as standard works to a 4cm GPS accuracy.
AMC 400s Rate Control with GPS
Automatic rate control with GPS guidance built in. INDIVIDUAL NOZZLE CONTROL
It is now very simple. We can preprogram your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor , so there is no need to spend hours fitting a complicated mechanical speed sensor! This system turns every nozzle off independently when the nozzle passes over a treated area and back on again when the nozzle goes over an untreated area. This system as standard works to a 4cm GPS accuracy. It can be upgraded to a 2cm accuracy.
