CLEVELAND GAMBETTI ‘PRO GOLF’Tractor mounted SPRAYERS

Professional Specification sprayers with G-Protect steelwork to prevent corrosion

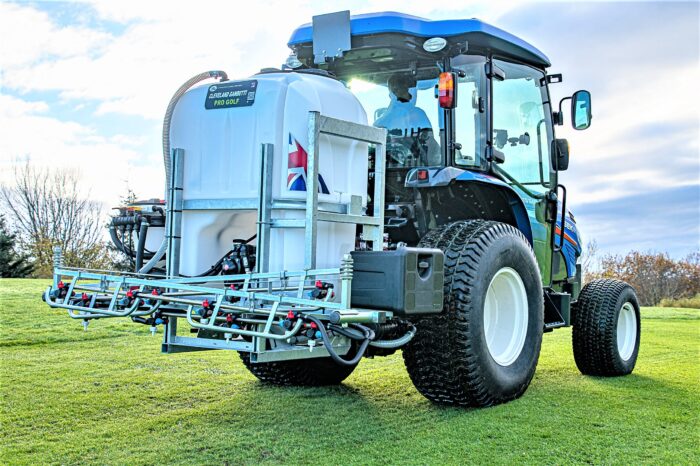

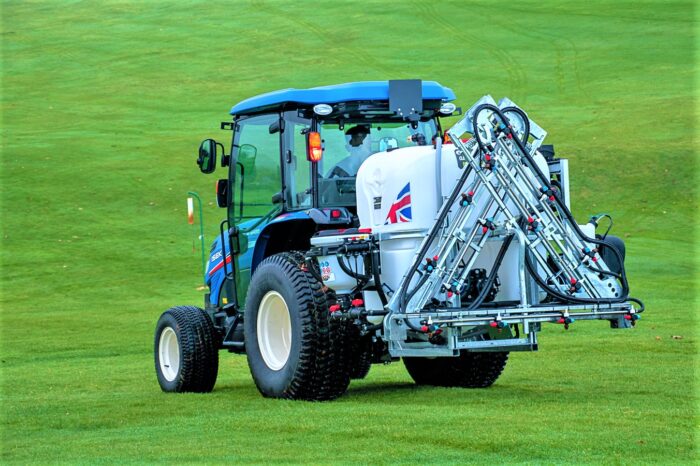

Gambetti Pro Golf tractor mounted Range

MADE IN GREAT BRITAIN

This range is available as a 300lt, 400lt, 600lt 800lt & 1000lt with a 6m boom as standard. What new… everything! A new frame with captive pin mountings which ensure absolute robust connection to the tractor. The frame is new from the ground up and has one bracket fitted as standard to accept every optional extra we offer. This way machines can be upgraded after initial purchase with ease. The complete machine has been specially treated to stop corrosion caused by liquid iron. In fact… there is NO PAINT! It is totally anti-corrosion treated to ensure longevity. All our latest booms and frames on the tractor mounted range are made in this way! We are so confident in our machine we offer a 3 year construction warranty.

A complete new range of booms….. a super tough manual boom, with anti corrosion treatment is fitted as standard. You can opt for an 8m boom or a 10m boom if you need to get further than the standard 6m.

Quad 4 way nozzles are fitted on stainless steel spray lines with nozzle protection. There is 50% less pipe work than our previous model to ensure thorough cleaning is easier and quicker!

A clean water rinse system and tank wash are fitted as standard. The all new clothing locker is 100% bigger than the old model and more accessible. There is a brand new chemical mixer hopper with high speed empty and a hopper and container rinse system to ensure it is kept clean.

why choose the Cleveland Gambetti Golf Pro…… Its tough, it has an anti corrosion treatment as standard, less plumbing, more accurate, more efficient and easier to use!

GPS RTK Touchscreen with Vario Nozzle Select

Cleveland were the pioneers of GPS nozzle control into the golf industry back in 2011. In 13 years a lot has changed. We now offer the latest world leading GPS systems which automatically selects the correct nozzle according to your forward speed, no matter the target application rate! The New 12 inch panoramic fully waterproof screen leads the way in GPS spraying on turf.

Key features:

  • Touch screen
  • Sunlight visibility resistant
  • 12″ Panoramic
  • See  the machine and the GPS operating side by side
  • Totally waterproof screen

Tractor Mounted Sprayers General Info

Pro Golf Tractor mounted sprayers are very popular with green keepers and football clubs.

This range is fitted with a three cylinder diaphragm pump, which means they run smoother, do not pulse and have the capability to spray large volumes at normal speed.

The Pro Golf Tractor Mounted has all the extra’s you would expect from a Gambetti sprayer to keep you within the law, hose pipe holder for mains water filling. Correct size of clothing locker, Fully shaped tank to enable spraying all but a few litres out even on slopes, a internal tank washing system with proper stainless steel spinning head. Stainless steel spray-lines fitted with a compact quad jet, standard tips include 2 sets of air induction nozzles and 2 flat fan nozzles 04 air ASJ jet (red) for ultra low drift, 05 WR for medium capacity high cover (brown), 08. Air Induction  high capacity high cover (white) and a 010 ASJ huge volume jet for liquid feed drenching. Fully pressure balanced electric controls are included and are operated from the cab with a neat switch box, computer controls may be fitted as well.

Standard Specification

  • 3 year warranty (limited).
  • NEW Liquid Iron proof anti corrosion treatment.
  • Shaped tank with deep total emptying sump.
  • Electric on/off control with manual boom section selection, with pressure balancing taps and clear pressure gauge.
  • Rinse tank with rinsing system.
  • NEW high power 20lt chemical mixer with can washer.
  • 3 cylinder high output diaphragm pump.
  • Protective clothing locker.
  • Clean water hand wash tank.
  • Hose pipe holder.

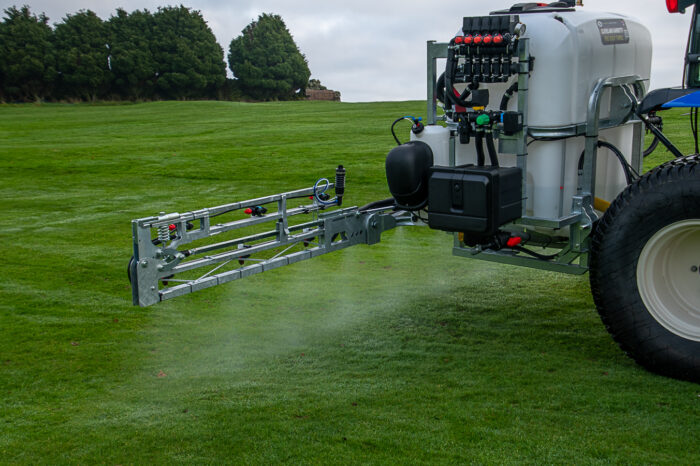

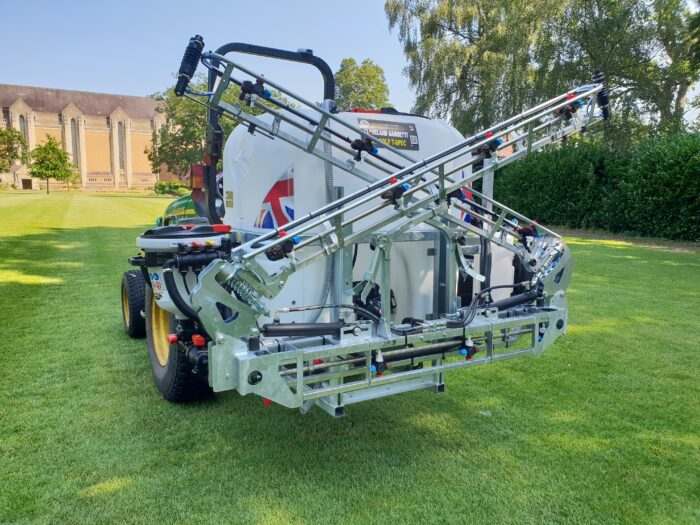

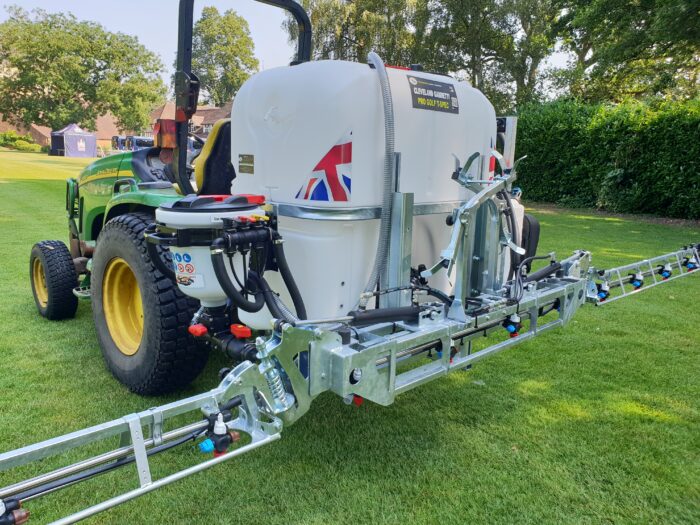

  • 6m anti corrosion manual folding steel boom.
  • Stainless steel boom lines.
  • Jet protection on last meter of boom.
  • 4 way jets for feed and chemical application.
  • Fill connector to fit to hose pipe or irrigation system for easier filling.

Boom Options

Pro-Golf Other boom options

  • 8MBOOM 8m manual boom (sprays 5m and 8m)
  • GOLF6H 6m Fully Hydraulic fold boom
  • GOLF6HE 6m Fully Elec fold boom
  • GOLF8H 8m Fully Elec fold boom
  • GFBK20 6m GF Electric fold aluminium ground contour following boom with in cab switching and independent boom fold
  • BK20EX Manual fold extension to 8m
  • WGF13 6m WGF Electric fold shrouded boom with ground following as standard. Supplied with Triple Jet nozzles.

Pro-Demount options

  • 3 section electric controls including pressure (for 6m boom).
  • 5 section electric controls including pressure (for 8m boom).
  • AMC 180 Golf course computer rate controller.
  • BSC PRO Golf course GPS Rate controller, with wifi link to the sprayer
  • G7 & G12 Golf Course GPS Rate controller (Seletron) with high spec GPS receiver and automatically turns individual nozzles on/off via satellite.
  • SET1 Onsite setup & training.
  • HR301K Hose reel c/w mounting kit and brass lance.
  • GBAM10 Foam marker kit for greens 5lt.
  • GBAM12 Foam marker kit for greens and fairways 20lt.
  • KF5 Foam concentrate (5 litre) bottle.

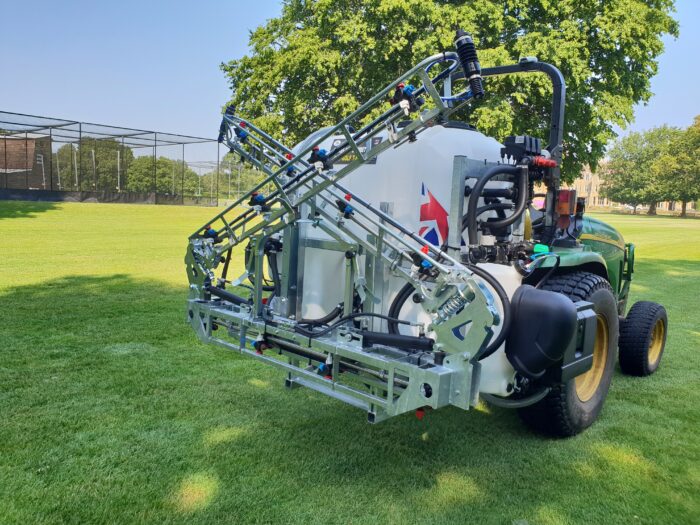

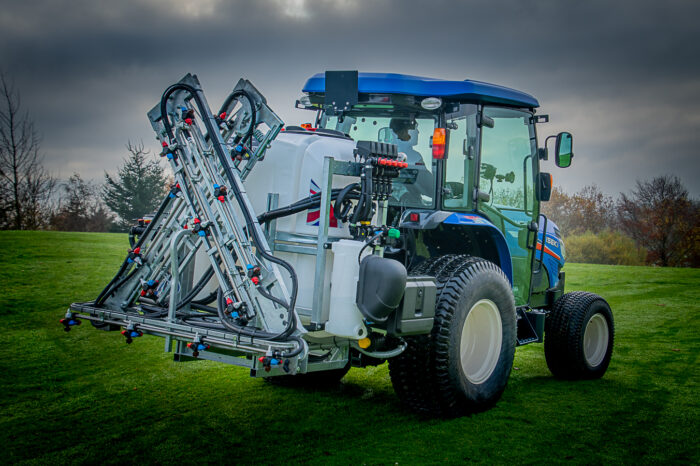

Hydraulic 6m Boom

Hydraulic 8m Boom

This boom folds and sprays at both 5m and 8m from the seat

BK20 Ground Following Boom

This boom is Aluminium which has a low weight but very strong.  It is available at 6m width with optional 8m boom extensions.  It uses a foam tyre on greasable bearing.  This boom follows both negative and positive contours without any electronics.  It is light so it does not mark greens at all!

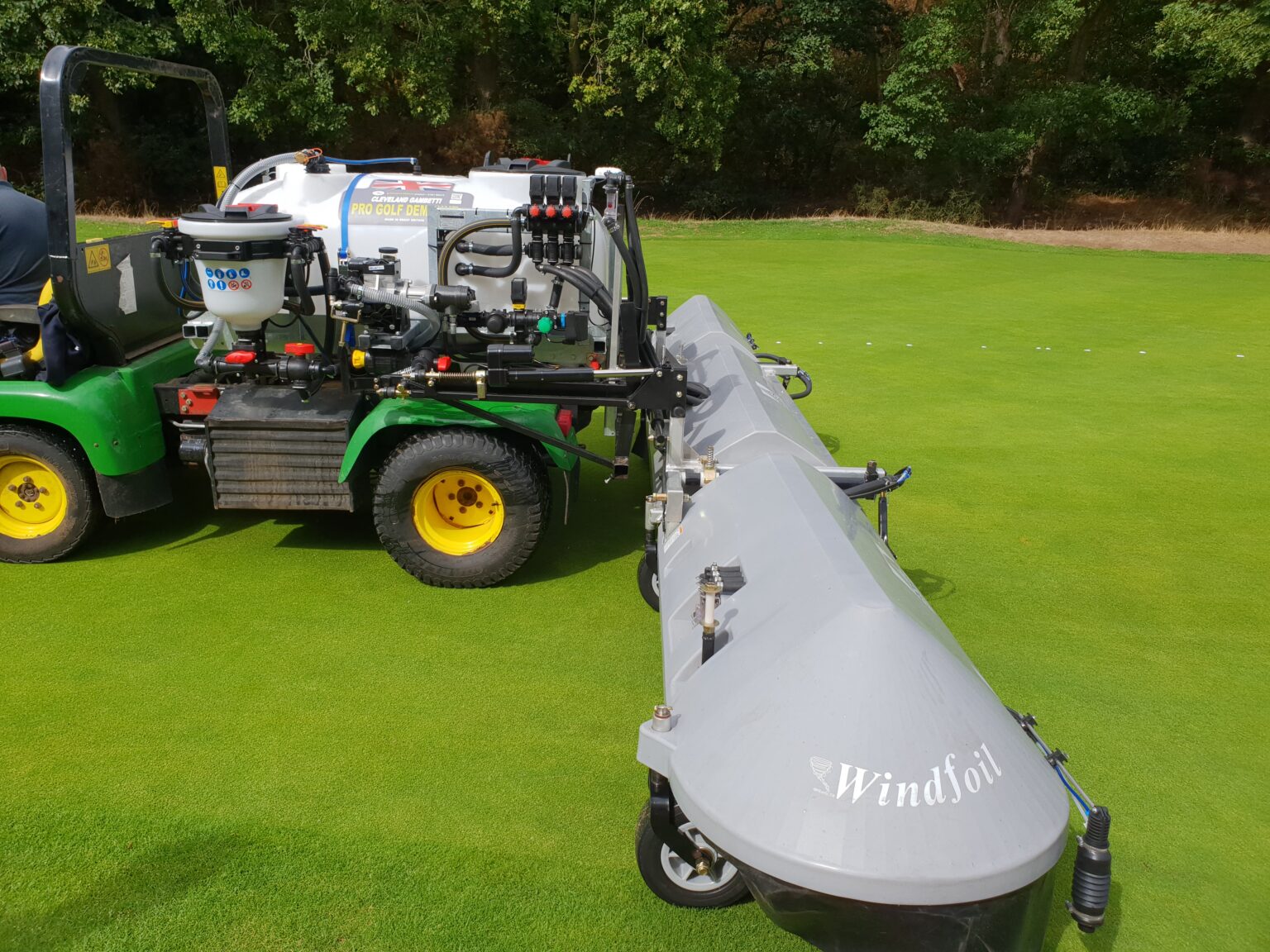

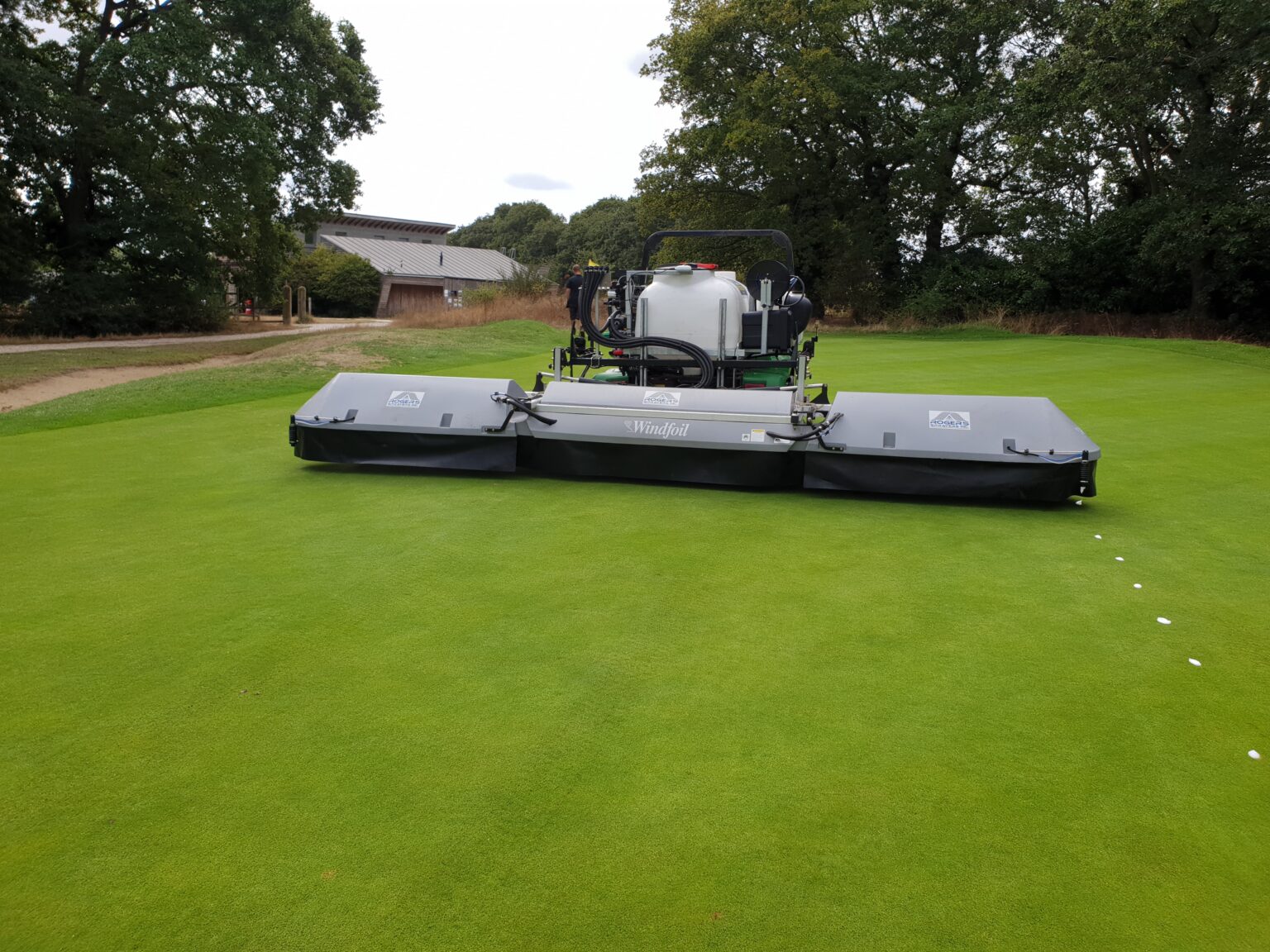

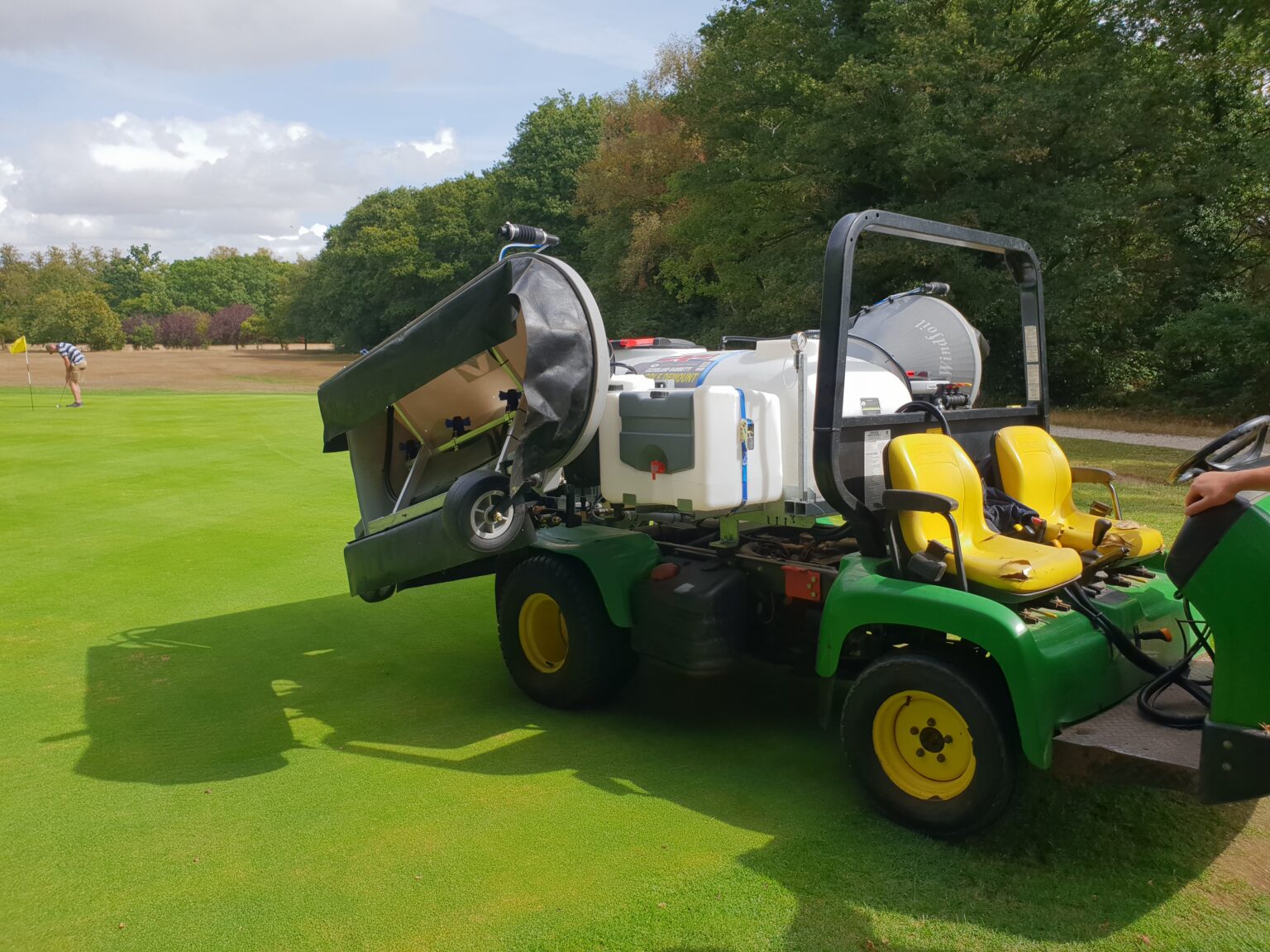

WGF13 Shrouded Boom

The best ground following covered boom available! In fact, it is the only fully shrouded boom on the market!  Ground following of both negative and positive contours.

The Pro Golf Tractor Mounted has Electric whole boom on / off fitted as standard ~ or you can fit the options below:

Electric Controls

All the sprayer is controlled from the cab. A main on/off switch, a pressure adjustment switch and 3 boom sections for a 6m boom with 5 boom sections available for an 8m a 10m & a 12m boom. Modern golf course tractors are often cabbed these days and this eliminates any need for the rear window to be open. Safer, less plumbing on the sprayer and far easier to use than manual controls!

AMC 180s Rate Control

You can add automatic rate control to any Gambetti Sprayer. It is now very simple. We can pre-program your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor now, so there is no need to spend hours fitting a complicated mechanical speed sensor!

BSC PRO Rate Control

Automatic rate control using the ultimate in screen technology.  Using a 10″ screen, the screen is wirelessly connected to the sprayer, meaning no cables are coming into the cab.  The system can also be upgraded to GPS section or individual nozzle control at any time We can pre-program your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor, so there is no need to spend hours fitting a complicated mechanical speed sensor!

G12 Rate Control with RTK GPS

Automatic rate control with GPS guidance built in. INDIVIDUAL NOZZLE CONTROL
It is now very simple. We can pre-program your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor , so there is no need to spend hours fitting a complicated mechanical speed sensor! This system turns every nozzle off independently when the nozzle passes over a treated area and back on again when the nozzle goes over an untreated area. This system as standard works to a 2cm GPS accuracy as standard
