CLEVELAND GAMBETTI ‘GPS PRO SPORT’ SPRAYERS

Easy access for truck maintenance.
GPS Individual Nozzle and PWM System fitted as standard
Large changes in vehicle speed and the target rate remains exact.

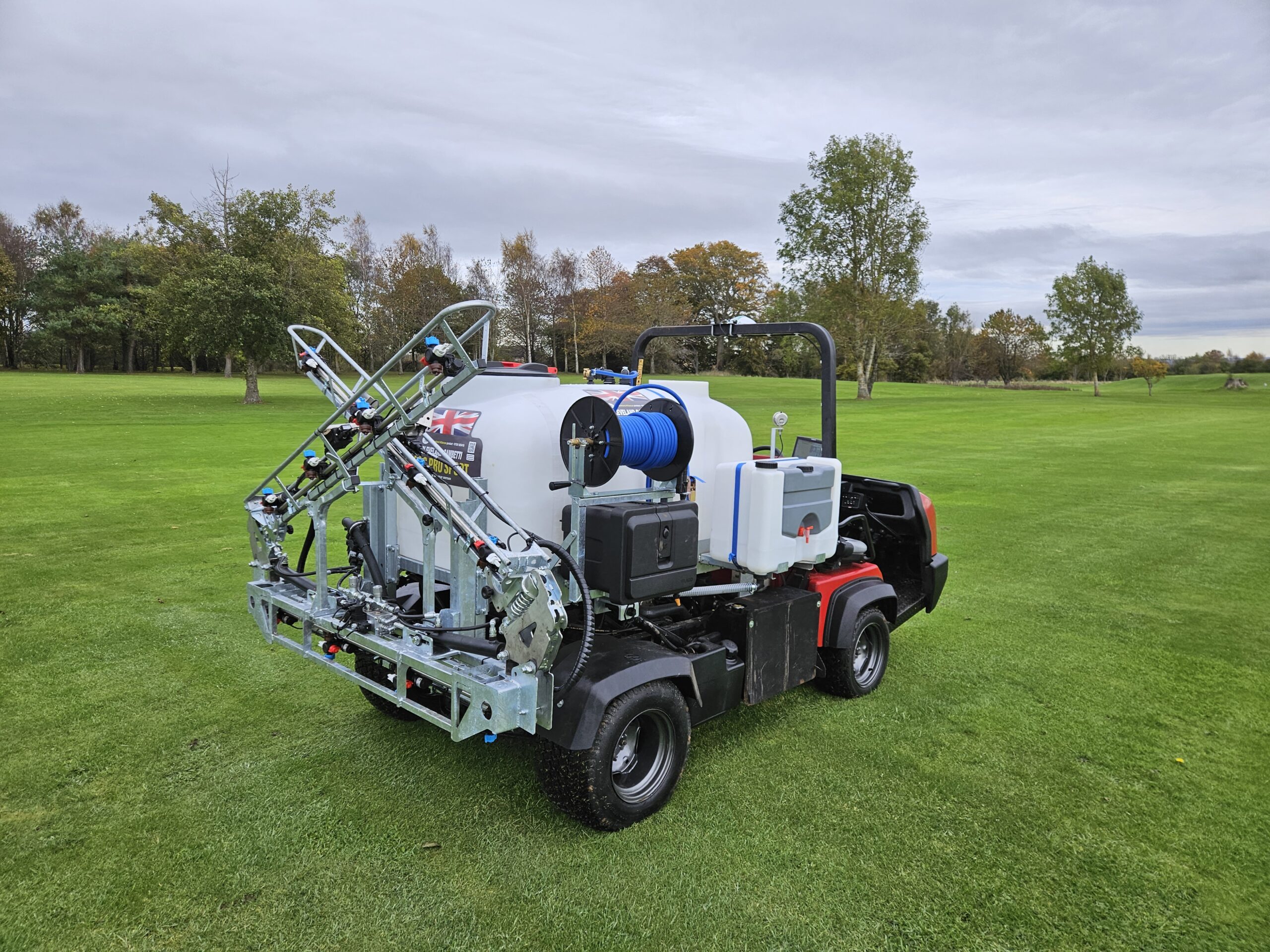

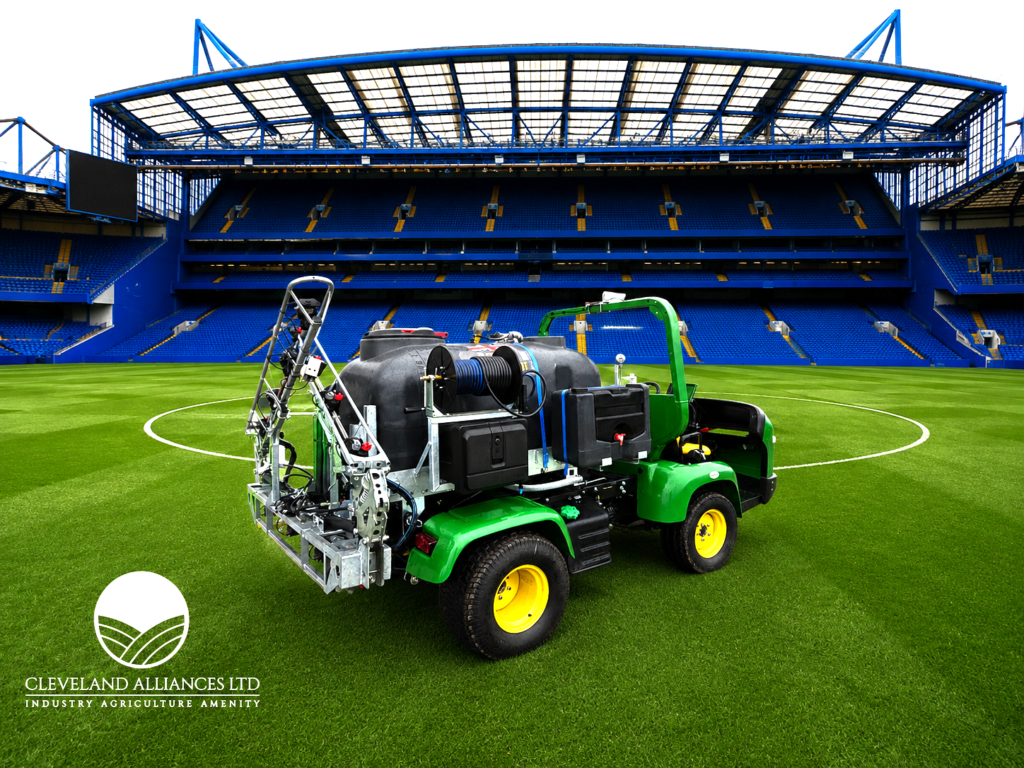

Cleveland Gambetti GPS Pro Sport sprayers are fully demountable should the requirement be there. They are available to fit to Toro workman, John Deere Progator, and the Jacobsen DX Truckster.  The tanks are designed to spread an even weight across all four wheels of the truck, the 3 cylinder pump ensures a smooth application rate even at high volume spraying.

This machine is available with vario select seletron nozzles or with our new PWM system.  Both systems mean the machine selects the correct flow rates matching the speed but with a much larger speed range.  Never over or under apply again! Standard features include RTK GPS, Individual nozzle control by GPS, 12″ Touch Screen, 2cm accuracy, chemical induction hopper, and a hose reel with 25m of hose and a high quality hand lance. Note: The shape of the Tank accommodates all the optional extras within the 2.2m folded width of the boom.  No vulnerable items wider than the truck!

GPS RTK Touchscreen with Vario Nozzle Select

Cleveland were the pioneers of GPS nozzle control into the golf industry back in 2011. In 13 years a lot has changed. We now offer the latest world leading GPS systems which automatically selects the correct nozzle according to your forward speed, no matter the target application rate! The New 12 inch panoramic fully waterproof screen leads the way in GPS spraying on turf.

Additionally for 2024 and 2025 – you can opt for the PWM system which has revolutionalised sprayers across agriculture and amenity.

Key features:

  • Touch screen
  • Sunlight visibility resistant
  • 12″ Panoramic
  • See  the machine and the GPS operating side by side
  • Totally waterproof screen
  • New Joystick Control


PWM = PULSE WIDTH MODULATION

Pressure-based rate control has become the norm on amenity sprayers around the world, however there are some inherent drawbacks with this method of control. By fluctuating the spray pressure to maintain the rate as forward speed changes, droplet size and therefore efficacy and drift characteristics are effected. As a result nozzle choice is a compromise, often with multiple sets required to achieve the operators targets.

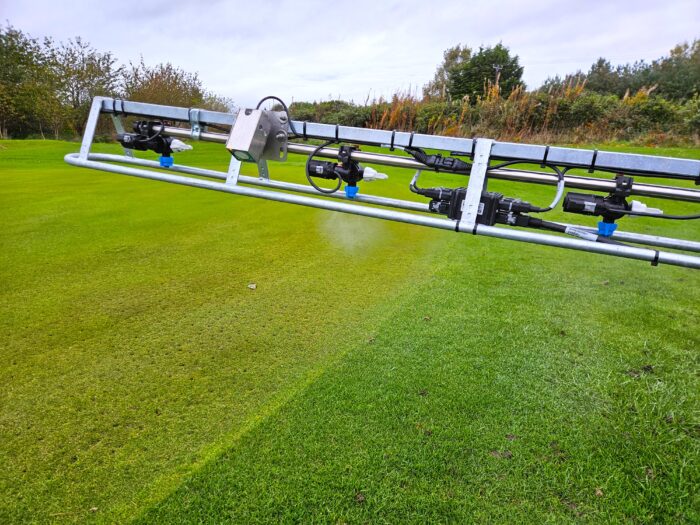

Pulse Width Modulation (PWM) offers solutions to these issues and whilst increasing spray efficacy at the same time. On a PWM system each nozzle body is fitted with an electric solenoid that pulses the spray on and off multiple times a second, this can be anywhere between 10-40Hz (pulses per second). Rate changes are achieved by varying the duration the nozzle is in the “on” position or “duty cycle”. This duty cycle is changed in relation to changes in forward speed, allowing instant rate control at each spray nozzle, with the pressure being fixed at all times to give a consistent droplet size across the whole field.

Features such as turn compensation, individual nozzle control and the ability to change the droplet size from the drivers seat, offers Cleveland customers the opportunity to maximise application efficacy like never before.

GPS auto steering

To maximize efficiency of your GPS sprayer, auto steering improves productivity.  Time is a hug factor for course managers and superintendents.  Autosteering maximizes time spent spraying!  When travelling with a 6m boom, if you overlap by just 1 nozzle on your previous run, your efficiency and productivity is reduced by 8%, 2 nozzles16% and so on.

Another key point, if your truck is shared between the sprayer and top dresser, you can use the steering and mapping for top dressing as well, further maximizing your investment

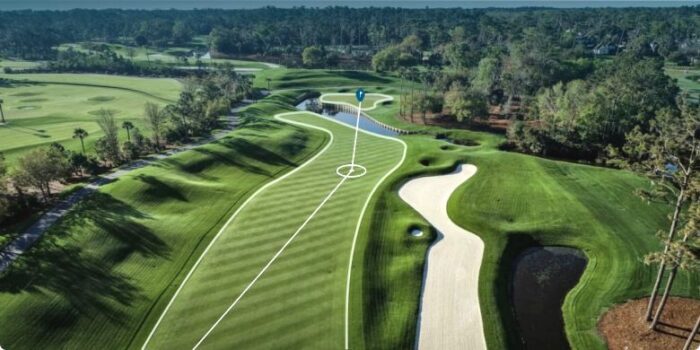

GPS Pro Sport Area Mapping

Our customers are looking for more than just GPS nozzle control.  Accuracy and data is key!  All our GPS sprayers run on our RTK network.  RTK is a subscription service which ensures absolute accuracy 365 days per year.  For example, if your Golf Green, Fairway or Football Pitch is mapped, that data is stored on your machine.  When you load that specific area to be sprayed, you simply drive onto that area, and the boom will start spraying at the chosen target rate.  Nozzle by nozzle to 2cm accuracy.  This ensures absolute coverage without over or under spraying.  We estimate a chemical or fertilizer saving up to 17% across a year.

sonic auto boom height

We have more ground following options than any other manufacturer.  For the standard 6m boom, we can offer our Sonic BLC boom levelling control system.  A sensor on each of the two boom arms ensures the boom is at 50cm.  It also means the boom does not collide with the ground around mounds or steep banks.

Standard Specification

Standard Sprayer Features Include:
● 3 year warranty (limited)
● NSTS compliant.
● Shaped tank with deep total emptying sump
● Full 3 boom section and pressure adjust electric controls
● 3 cylinder 115 lit/min diaphragm pump HYDRAULIC DRIVE
● Large clean water tank c/w cleaning system
● Chemical mixer hopper c/w can washers
● Protective clothing locker
● Clean water hand wash tank (15lt)
● Hose Pipe / Irrigation connector with GEKA coupler
● Stainless steel boom lines
● Full nozzle protection (nozzles housed within the boom)
● Hose Reel with 25m / 10mm 40 Bar hose and hand-lance
● Geka fast fill connection from irrigation system Included
● 4 way jets for feed and chemical application
● Hydraulic 6m boom
● Auto Rate Controller with 12″ ISOBUS Touch Panoramic Screen
● GPS Mapping linked with Google® maps + Field Guidance
● Individual GPS Nozzle Control with Vario select nozzles or PWM

Choose Vario Select or PWM Flowtron on order
Onsite Installation by Cleveland with full training

GPS Pro Sport options

  • Sonic Auto Boom Height Control (6m Standard boom only)
  • GPS Auto Steering for your truck
BOOM OPTIONS:
  • GOLF8H 8m Fully Elec fold boom
  • GFBK20 6m GF Electric fold aluminium ground contour following boom with in cab switching and independent boom fold
  • BK20EX Manual fold extension to 8m
  • WGF13 6m WGF Electric fold shrouded boom with ground following as standard. Supplied with Triple Jet nozzles.

Hydraulic 6m standard Boom

Hydraulic 8m Boom

BK20 Ground Following Boom

This boom is Aluminium which has a low weight but very strong.  It is available at 6m width with optional 8m boom extensions.  It uses a foam tyre on greasable bearing.  This boom follows both negative and positive contours without any electronics.  It is light so it does not mark greens at all!

WGF13 Shrouded Boom

The best ground following covered boom available! In fact, it is the only fully shrouded boom on the market!  Ground following of both negative and positive contours.

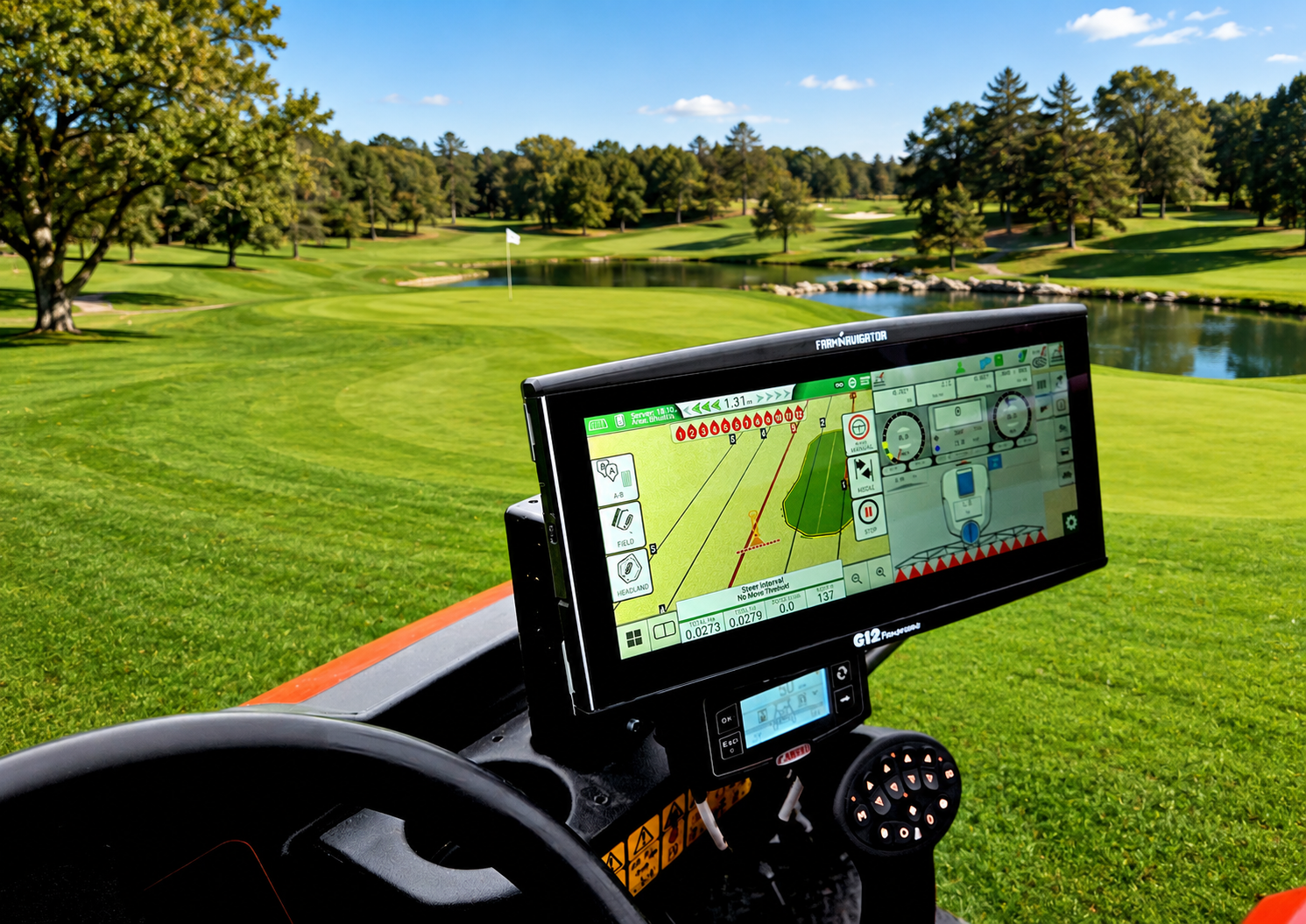

Standard G12 Controller

Automatic rate control using the ultimate in screen technology.  Using a 12″ panoramic dual screen.  The G12 if required, can stay on the truck and be used for other applications.  For example, if you had GPS auto steering, you could use the steering, guidance and loaded maps to carry out that task using the same truck.  We can even provide steering to another vehicle and you could share the screen between vehicles.

The screen is fully water proof and has anti glare technology, so it can easily be viewed in low or overhead sunlight.

This screen comes with Remote Support!  We add wifi to the vehicle, which allows our technicians to log into your machine when you are in the field.  IF there is a problem or you need us to check some settings, we can log in from our location and make those changes and tests whilst you are spraying.
