cleveland gambetti pro golf t-spec gps-e

Tough, strong and a special anti corrosion coating. Filters and components easily accessed.
No components between the cab and the tank
3 year construction warranty

MADE IN GREAT BRITAIN

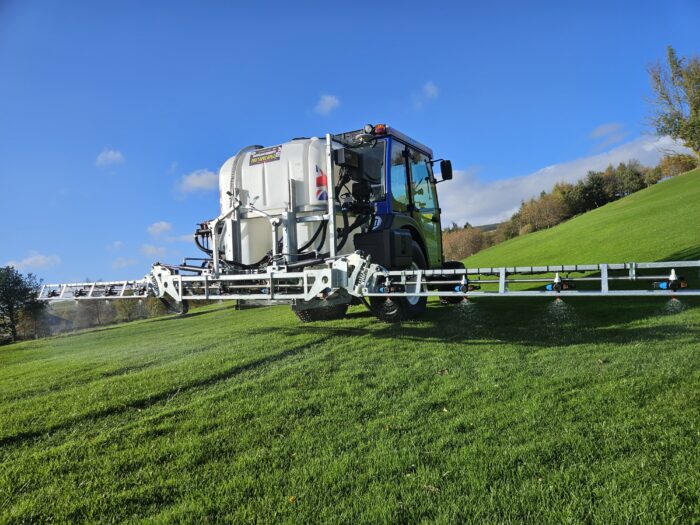

This range is available as 600lt 800lt & 1000lt with an all new 6m hydraulic folding boom as standard. What new… everything! A new frame with captive pin mountings which ensure absolute robust connection to the tractor. The frame is new from the ground up and has one bracket fitted as standard to accept every optional extra we offer. This way machines can be upgraded after initial purchase with ease. The complete machine has been specially treated to stop corrosion caused by liquid iron. In fact… there is NO PAINT! It is totally anti-corrosion treated to ensure longevity. All our latest booms and frames on the tractor mounted range are made in this way! We are so confident in our machine we offer a 3 year construction warranty.

A complete new range of booms….. a super tough hydraulic boom with nozzles fully enclosed in the boom and anti corrosion treatment is standard. You can opt for a fully hydraulic 8m boom or a fully hydraulic 10m boom if you need to get further than the standard 6m.

Quad 4 way nozzles are fitted on stainless steel spray lines with nozzle protection. There is 70% less pipe work than our previous model to ensure thorough cleaning is easier and quicker!

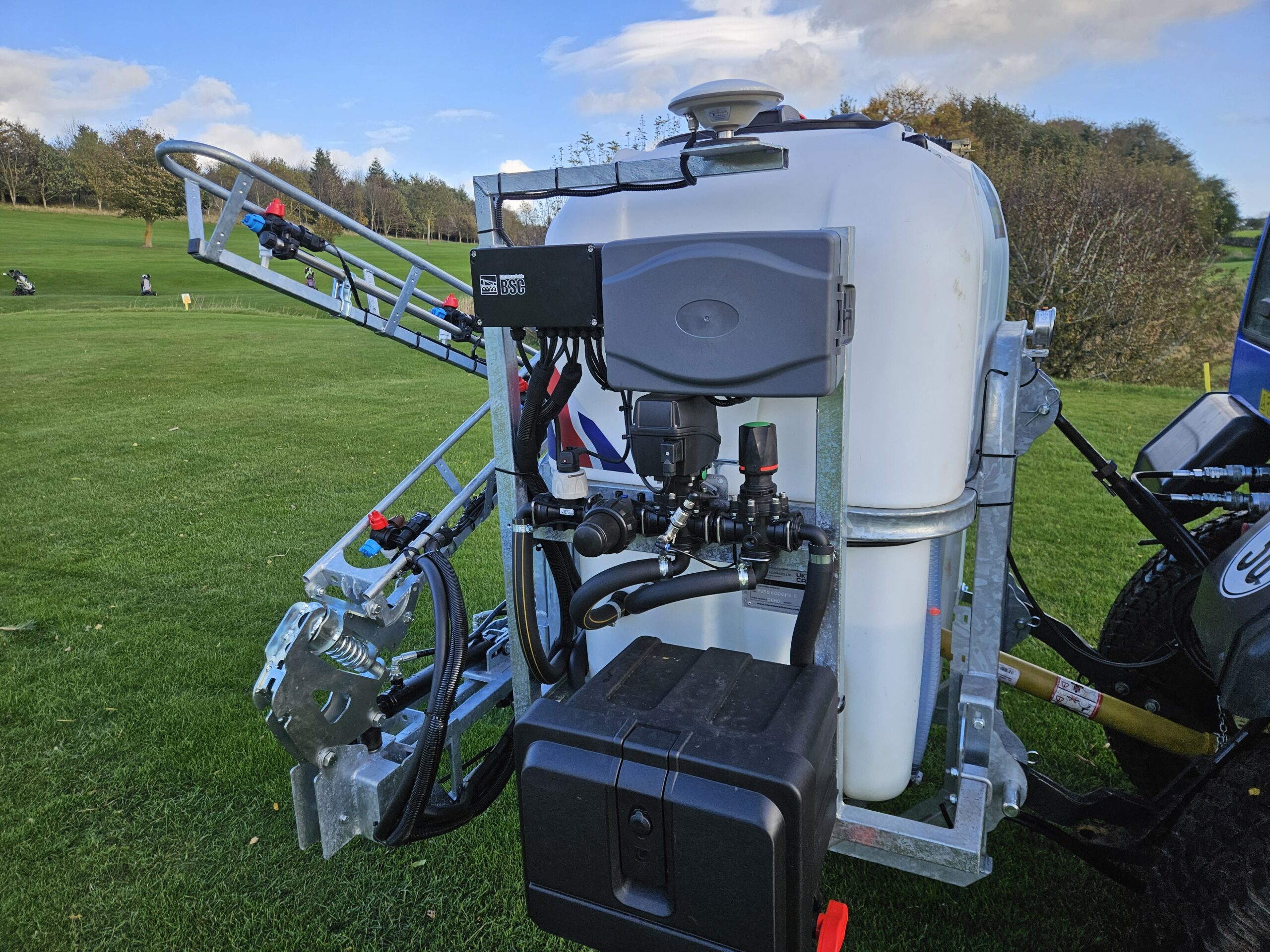

A clean water rinse system and tank wash are fitted as standard. The all new clothing locker is 100% bigger than the old model and more accessible. There is a brand new chemical mixer hopper with high speed empty and a hopper and container rinse system to ensure it is kept clean.

The machine has GPS individually controlled nozzles and a completely clean front. This means there are no controls or plumbing between the sprayer and the tractor making putting it on and off a very easy job indeed.

Why choose the Cleveland Gambetti Golf Pro? Its tough, it has an anti corrosion treatment as standard, less plumbing, more accurate, more efficient and easier to use!

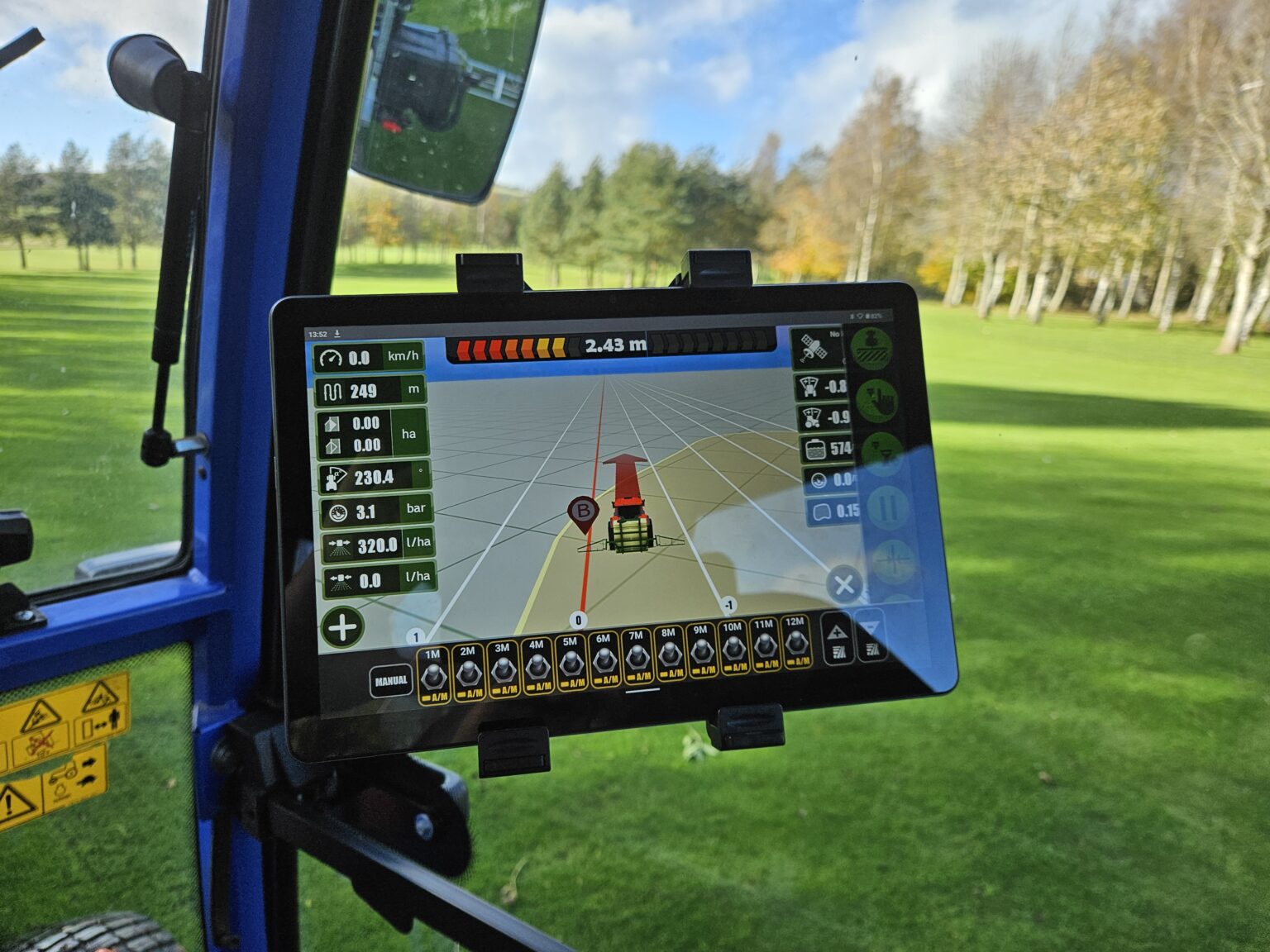

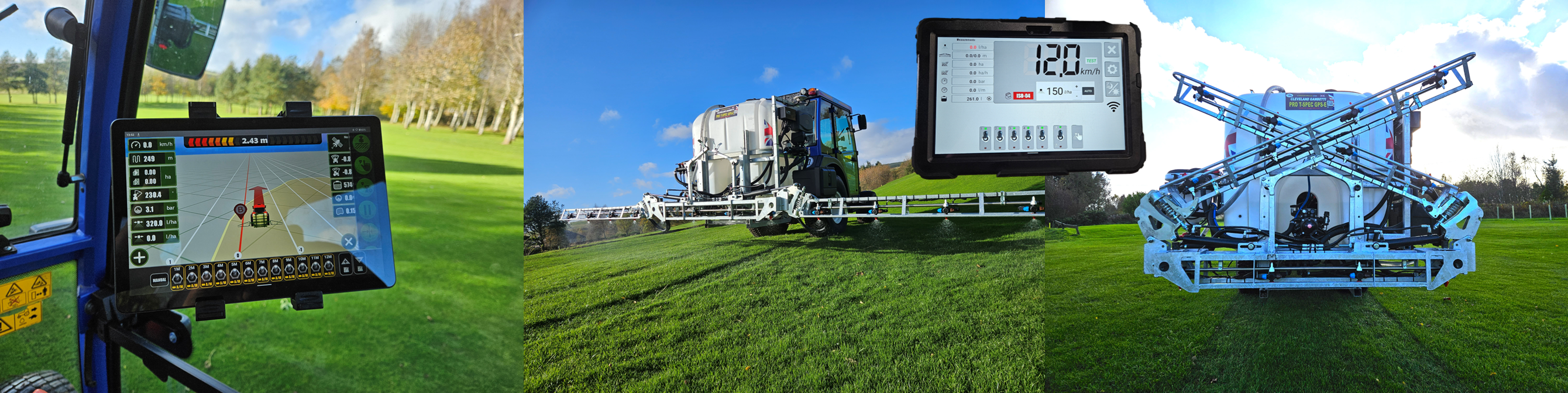

GPS RTK Touchscreen with GPS Nozzle control

Cleveland were the pioneers of GPS nozzle control into the golf industry back in 2011. In 13 years a lot has changed. We now offer the latest world leading GPS systems which automatically turns on and off each nozzle according to the treated and untreated area. The New 10 inch tablet based screen has a seemles wifi connection to the sprayer ECU.  This means NO cables coming into the cab!  A superb tried and tested system.

Key features:

  • 10″ Touch screen
  • Google Maps Integration
  • Save all your greens and fairways
  • Accurately calculate your pitches or golf course
  • See  the machine and the GPS operating on the same screen

PGTS gps-e Sprayers General Info

Pro Golf T-Spec GPS-E sprayers are the best choice for the professional operator

This range is fitted with a three cylinder diaphragm pump, which means they run smoother, do not pulse and have the capability to spray large volumes at normal speed.

The Pro Golf T-Spec GPS-E has all the extra’s you would expect from a Cleveland Gambetti sprayer, to keep you within the law, Geka hose pipe holder for mains or Irrigation  water filling. Correct size of clothing locker,  Fully shaped tank to enable spraying all but a few litres out, even on slopes, an internal tank washing system with proper stainless steel spinning head. Stainless steel spray-lines fitted with a compact quad jet, standard tips include 2 sets of air induction nozzles and 2 flat fan nozzles 04 air ASJ jet (red) for ultra low drift, 05 WR for medium capacity high cover (brown), 08. Air Induction  high capacity high cover (white) and a 010 ASJ huge volume jet for liquid feed drenching. Fully pressure balanced electric controls are included and are operated from the cab with a touch screen rate controller.  Speed up and slow down, the rate remains exact.

Standard Specification

  • 3 year warranty (limited)
  • NSTS compliant.
  • Shaped tank with deep total emptying sump
  • Individual nozzle control
  • GPS guidance with area mapping
  • Auto Rate Control with forward speed

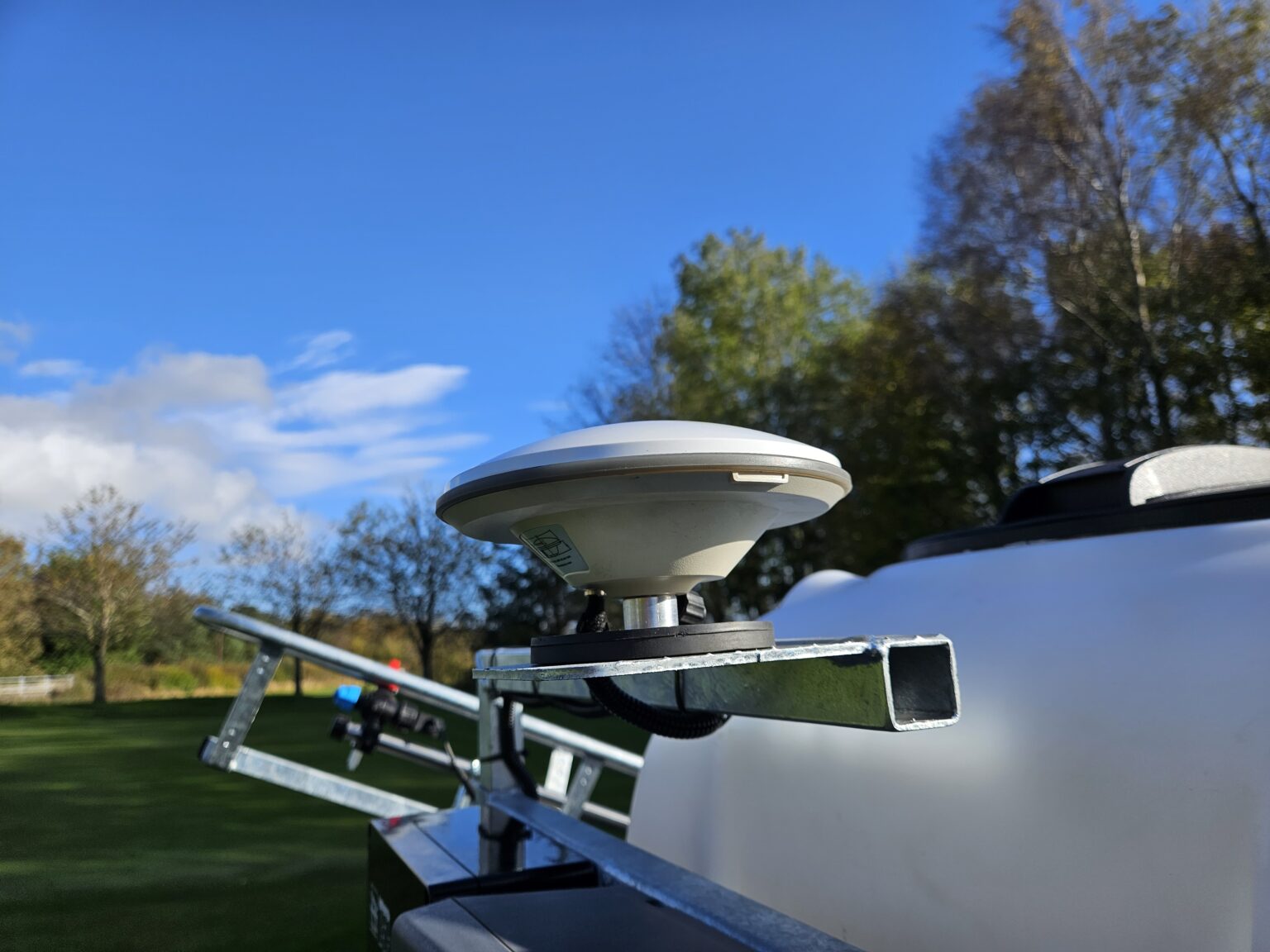

  • GPS receiver with RTK connection
  • 3 cylinder 115 lit/min diaphragm pump
  • Large clean water tank c/w cleaning system
  • Chemical mixer hopper c/w can washers
  • Protective clothing locker
  • Clean water hand wash tank (15lt)
  • Hose Pipe / Irrigation connector with GEKA coupler
  • 6m Hydraulic ‘G-Protect’ Coating
  • Stainless steel boom lines
  • Jet protection (fully enclosed nozzles)
  • 4 way jets for feed and chemical application
  • Geka fast fill connection from irrigation system Included

Pro golf t-spec gps-e options

  • Sonic Auto Boom Height Control (6m Standard boom only)
  • MG60001 RTK GPS Auto Steering fitted to your tractor
    Please advise your tractor model before
  • GOLF8H 8m Fully Elec fold boom
  • GFBK20 6m GF Electric fold aluminium ground contour following boom with in cab switching and independent boom fold
  • BK20EX Manual fold extension to 8m
  • WGF13 6m WGF Electric fold shrouded boom with ground following as standard. Supplied with Triple Jet nozzles.

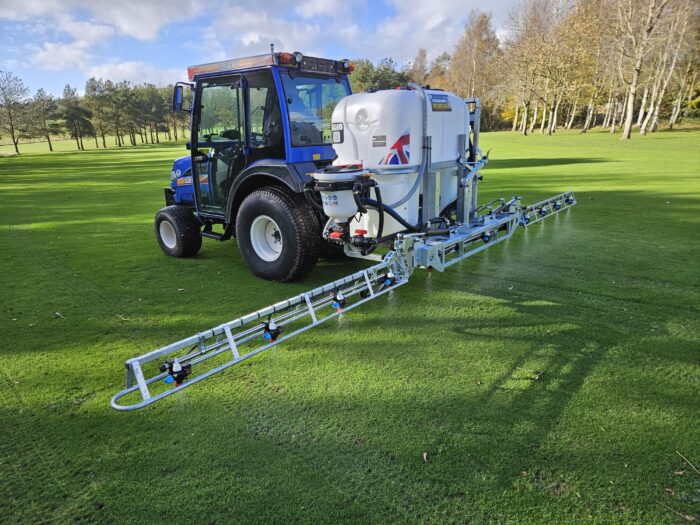

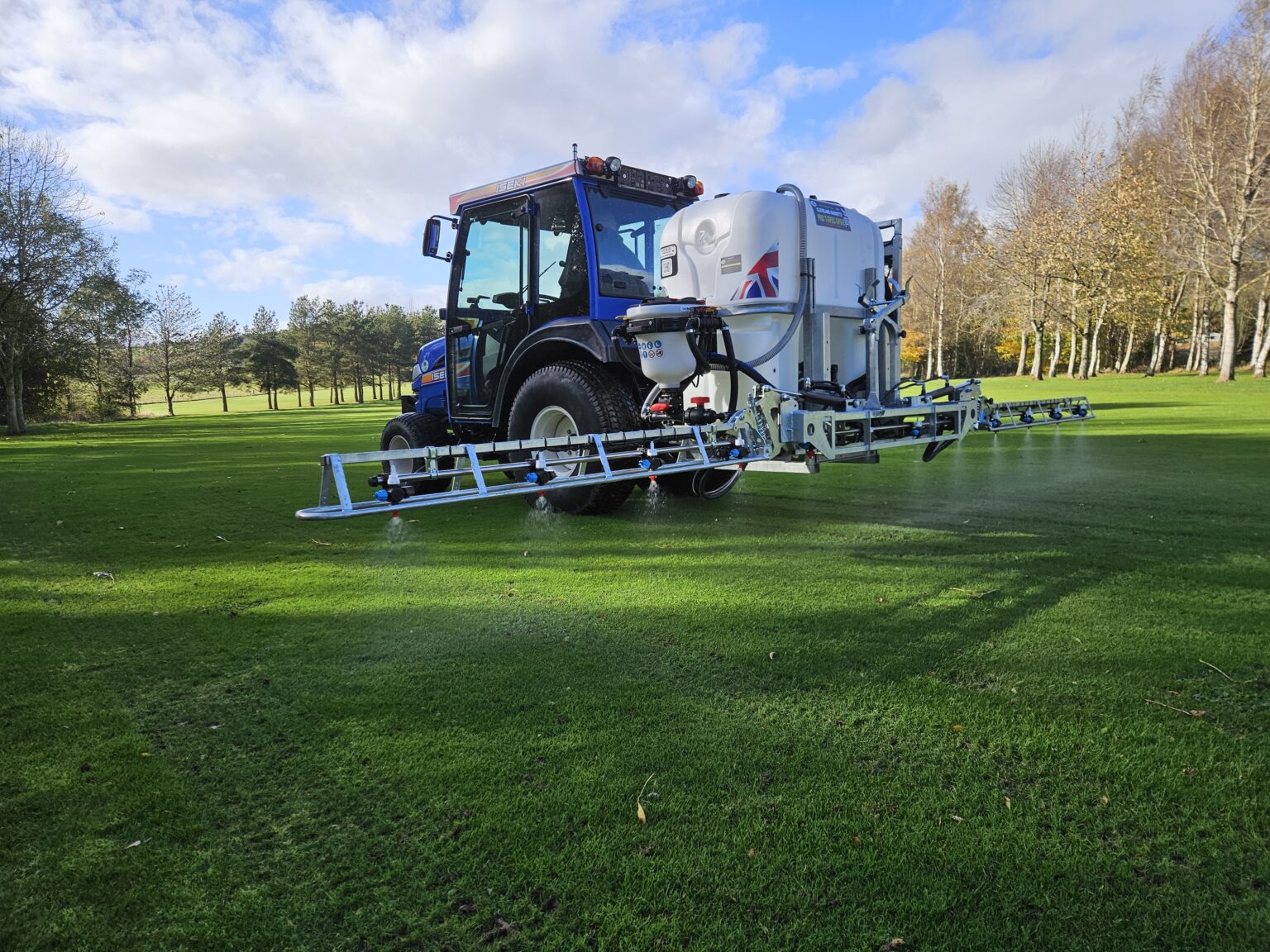

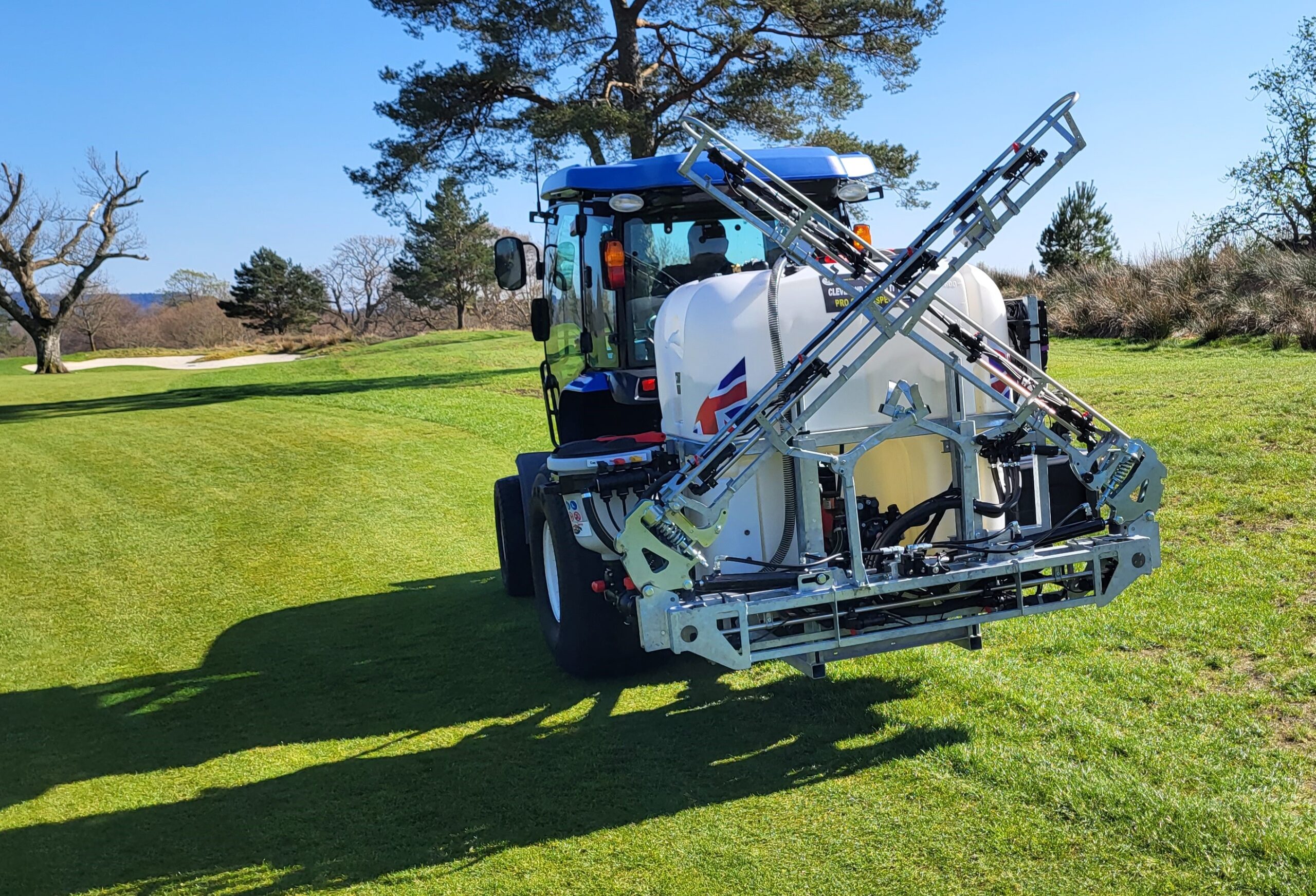

Hydraulic 6m Boom fitted as standard

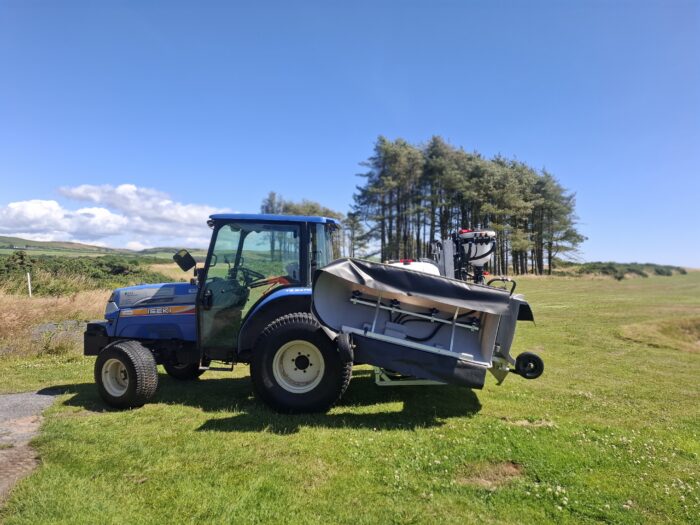

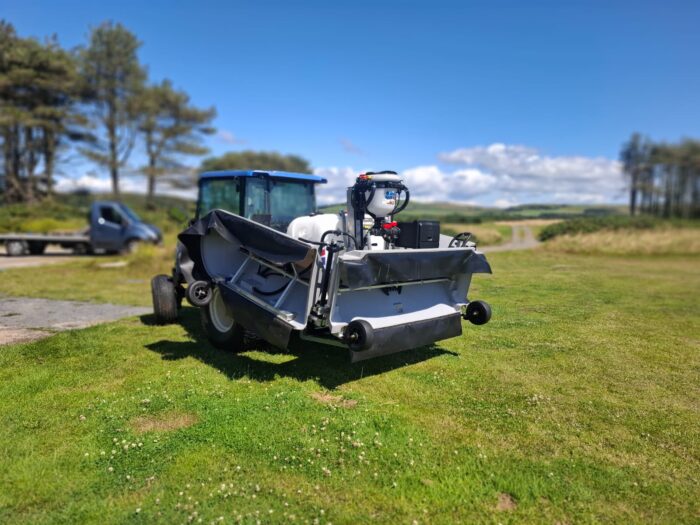

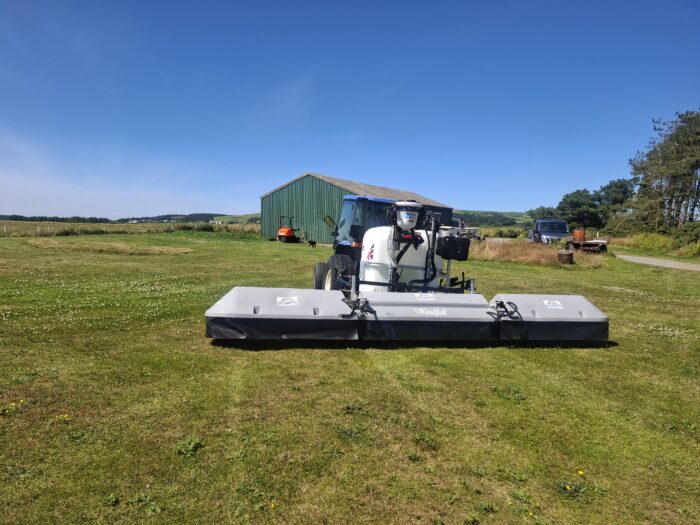

BWGF13 Ground Following Boom

This boom is Aluminium which has a low weight but very strong.  It is available at 6m width.  It uses a foam tyre on greasable bearing.  This boom follows both negative and positive contours without any electronics.  It is light so it does not mark greens at all!

Fully shrouded in one piece so can operate in all undulations and windy conditions!  Popular with coastal courses

BSC PRO Rate Control

Automatic rate control using the ultimate in screen technology.  Using a 10″ screen, the screen is wirelessly connected to the sprayer, meaning no cables are coming into the cab.  The system can also be upgraded to GPS section or individual nozzle control at any time We can pre-program your rates and the operator simply selects the rate they want, switch on and drive! We even take the forward speed signal from a simple GPS speed sensor, so there is no need to spend hours fitting a complicated mechanical speed sensor!
